Multi Pipe Connector MKA


Multi Pipe Connector MKA

  • For different dimensions and materials
  • Internal seal
  • For horizontal and vertical installations
  • Resistant to 0.5 bar

Multi Pipe Connector – for the internal connection of pipe systems with different dimensions and materials

The Multi Pipe Connector joints pipe systems with different dimensions
and materials and can be used for flush-mounting and non-buried
pipe connections. Multi Pipe Connectors can be combined with other Multi Pipe Connectors.

The Multi Pipe Connector is made from a durable EPDM rubber and has a noise reducing impact on downpipes.

PHONE Sales & Technical-Team
+49 2234 928 03-0
Description
Multi Pipe Connector MKA
Technical Specification

Multi Pipe Connector for the internal connection of pipe systems with different dimensions and materials.

Manufacturer:

MÜCHER DICHTUNGEN®, 50226 Frechen, T +49 2234 928 03-0, F -55

Pressure Tightness:

0.5 bar wasser / -0.3 bar vakuum

Sealing Material:

EPDM rubber according to DIN EN 681-1

Temperature Resistance:

-40 C° to +120° C, temporary max. temperature +160° C

Standard/Approval:

DIN EN 681-1, CE16
MULTI PIPE CONNECTOR
Article NumberReferenceA Size Range (mm)B Size Range (mm)L Length (mm)resistant to (bar) Weight (kg)
500002Multi Pipe Connector KA 50 | 40/3250/4032640.50.10
500003Multi Pipe Connector KA 64/58 | 50/4064/5850/40960.50.10
500004Multi Pipe Connector KA 75/70 | 50/4075/7050/40980.50.10
500005Multi Pipe Connector KA 96/83 | 75/5096/8375/501000.50.20
500126Multi Pipe Connector KA 100/105 | 75/70100-10575/50700.50.20
500006Multi Pipe Connector KA 100/105 | 90/75100-10590/75700.50.20
500007Multi Pipe Connector KA 123/130 | 110/75130-123110/75690.50.30
500008Multi Pipe Connector KA 150/125 | 110150/1251101200.50.40
  • Position pipe ends and cut off Multi Pipe Connector depending on the application.
    Position pipe ends and cut off Multi Pipe Connector depending on the application.
  • Fold in Multi Pipe Connector depending on the application.
    Fold in Multi Pipe Connector depending on the application.
  • Insert Multi Pipe Connector into larger pipe, apply lubricant to plain ended pipe and insert smaller pipe.
    Insert Multi Pipe Connector into larger pipe, apply lubricant to plain ended pipe and insert smaller pipe.

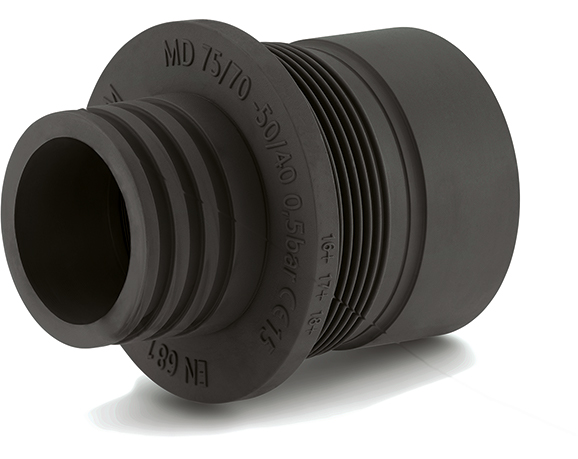

kombiadapter 01 3d

DIBt-Approval (Z-42.5-600)

TitleFormatSize
Datasheet (PDF)pdf1.30 MBDownload
Product Range (XLS)xls29.50 KBDownload
