FKM-Coupling RESISTOR


FKM-Coupling

FKM-Coupling RESISTOR

  • Fluoro-Elastomer FKM
  • Industrial applications
  • Chemical and thermal resistant
  • Resistant to 0.6 bar

FKM-Coupling RESISTOR – chemical and thermal resistant for industrial applications

The FKM-Coupling RESISTOR joints plain ended industrial pipe systems with same diameters. It is suitable for above ground and non-pressure applications.

THE FKM-gasket allows a high chemical resistance and a thermal stability of up to +180°C.

The stainless steel shear band covers the entire coupling, therefore protecting the elastomer sleeve.

PHONE Sales & Technical-Team
+49 2234 928 03-0
Description
FKM-Coupling RESISTOR
Technical Specification

FKM-Coupling RESISTOR used in above ground chemical resistant plain ended industrial pipe systems with same diameters. THE FKM-gasket allows a high chemical resistance and a thermal stability of up to +180°C.

Manufacturer:

MÜCHER DICHTUNGEN®, 50226 Frechen, T +49 2234 928 03-0, F -55

Pressure Tightness:

0.6 bar water / -0.3 bar vacuum

Jetting Resistance:

120 bar

Sealing Material:

FKM Fluororubber according to DIN ISO 1629

Stainless Steel:

AISI 304/1.4301 according to DIN EN 10088-2

Temperature Resistance:

-20°C to +180°C

Standard/Approval:

DIN EN 1629, CE18
FKM-COUPLING RESISTOR
Article NumberReferenceA Size Range (mm)L Length (mm)druckdicht (bar)Weight (kg)
90809002RESISTOR FKM 6051-60540.60.2
90809003RESISTOR FKM 9077-90540.60.2
90809004RESISTOR FKM 115102-115540.60.2
90809005RESISTOR FKM 168155-168760.60.5

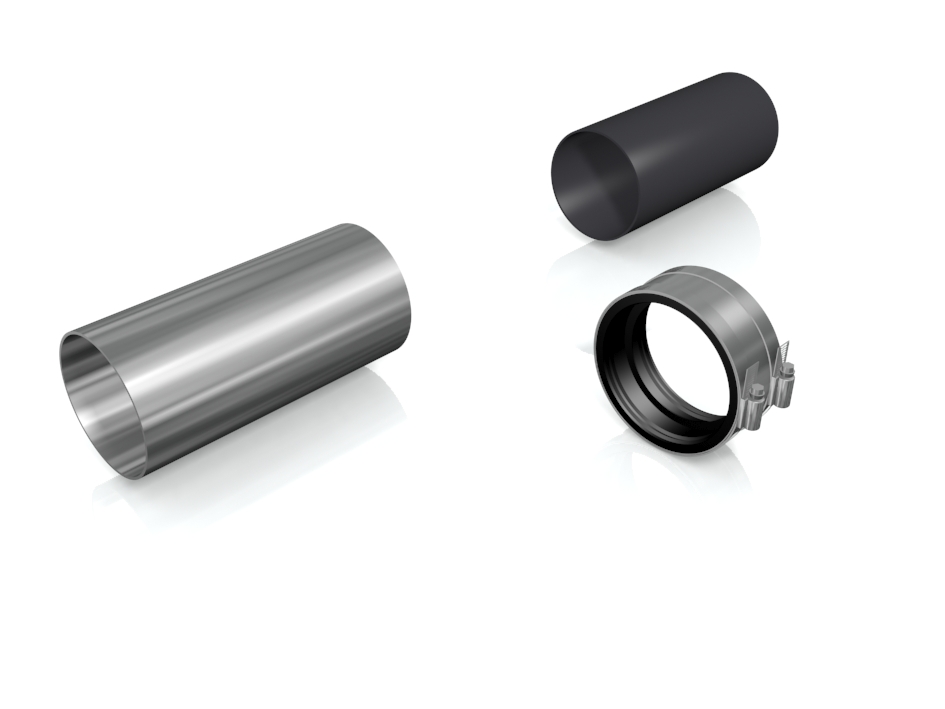

  • Position plain ended pipes.
    Position plain ended pipes.

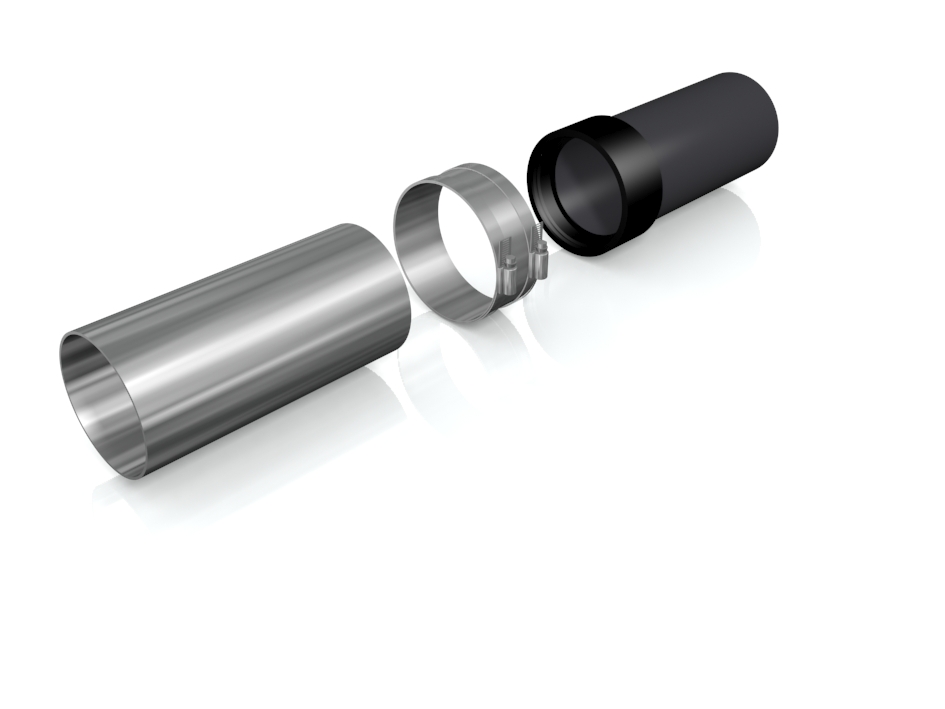

  • Slide sleeve over one plain end and push shear band over.
    Slide sleeve over one plain end and push shear band over.

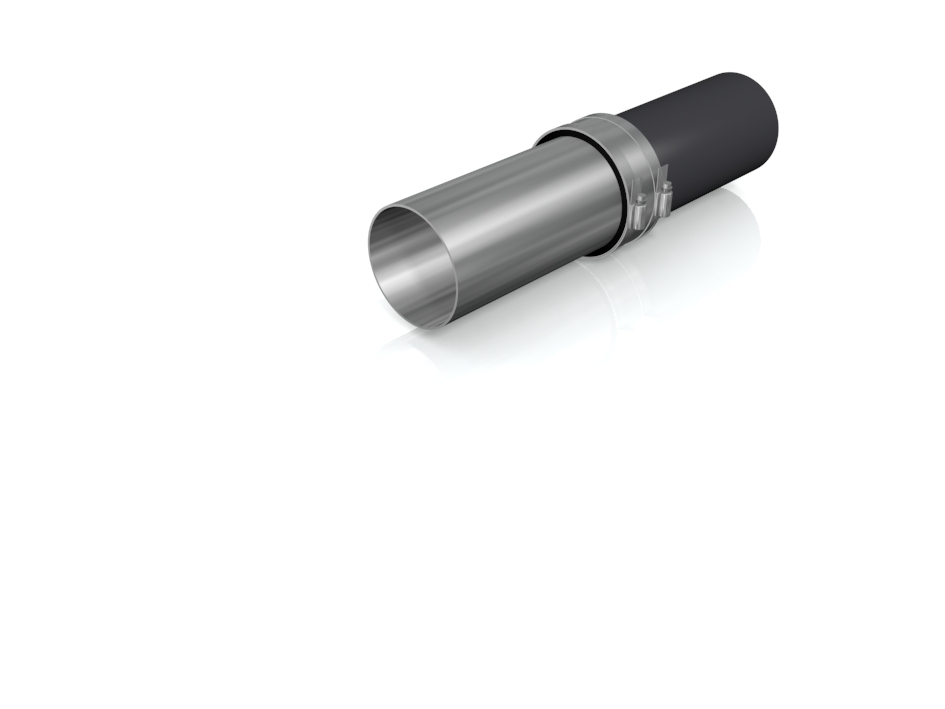

  • Tighten clamps reciprocally.
    Tighten clamps reciprocally.
