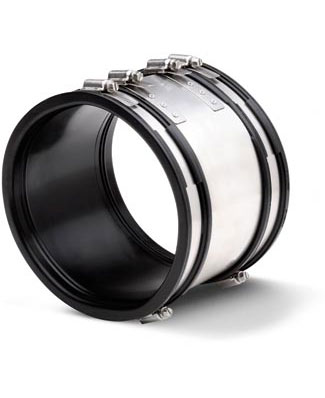

Standard Coupling Canada Plus MSC Type 2B


Standard Coupling Canada Plus MSC Type 2B

  • For all pipe materials
  • For above and below ground
  • For usage with bushes
  • Resistant to 2.5 bar

Standard Coupling Canada Plus Type 2B – for the connection of all pipe systems with different or same outside diameters

The Standard Coupling Canada Plus Type 2B connects all plain ended pipes within same or different dimensions and is compensating
differences in outside diameters of max. 12 mm. Larger differences will require the use of bushes.

The Standard Coupling Canada Plus Type 2B can be used for applications
above and below ground as well as inside and outside of buildings.

PHONE Sales & Technical-Team
+49 2234 928 03-0
Description
Standard Coupling Canada Plus MSC Type 2B
Technical Specification

Standard Coupling Canada Plus Type 2B for connection of all plain ended pipe materials with different or same outside diameters for applications above and below ground as well as inside and outside of buildings. Differences in outside diameters of more than 12 mm will require the use of bushes.

Manufacturer:

MÜCHER DICHTUNGEN®, 50226 Frechen, T +49 2234 928 03-0, F -55

Pressure Tightness:

2.5 bar Water / -0.3 bar Vacuum

Jetting Resistance:

120 bar

Corrosion Resistance:

TOX- Technology

Sealing Material:

EPDM or Nitrile (NBR) rubber with lock in place profile according to DIN EN 681-1

Stainless Steel:

AISI 304/1.4301, alternatively AISI 316/1.4404 according to DIN EN 10088-2

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

DIN EN 16397-2, CE15
COUPLING CANADA PLUS, TYPE 2B FOR ALL PIPES MATERIALS
Article NumberReferenceA Size Range (mm)L Length (mm)resistant to (bar)NmWeight (kg)
74000050Canada Plus MSC 5042-50902.560.1
74000065Canada Plus MSC 6555-65902.560.3
74000075Canada Plus MSC 7565-75902.560.3
74000089Canada Plus MSC 8975-89902.560.4
74000095Canada Plus MSC 9585-95902.560.5
74000100Canada Plus MSC 10085-1001002.560.5
79000115Canada Plus MSC 115100-1151202.560.8
79000120Canada Plus MSC 120105-1201202.560.9
73100137Canada Plus MSC 137120-1371202.560.9
79000150Canada Plus MSC 150125-1501202.561.0
73125162Canada Plus MSC 162137-1621202.561.1
79000175Canada Plus MSC 175150-1751202.561.2
79000190Canada Plus MSC 190165-1901202.561.6
73150200Canada Plus MSC 200175-2001502.5101.7
79000212Canada Plus MSC 212187-2121502.5101.8
79000225Canada Plus MSC 225200-2251502.5101.9
73200250Canada Plus MSC 250225-2501502.5102.0
73200275Canada Plus MSC 275250-2751502.5102.3
79000290Canada Plus MSC 290265-2901502.5103.4
73250310Canada Plus MSC 310285-3101902.5103.5
79000320Canada Plus MSC 320290-3201902.5133.7
73250335Canada Plus MSC 335310-3351902.5133.8
  • Position plain ended pipes.
    Position plain ended pipes.
  • Position plain ended pipes.
    Position plain ended pipes.
  • Center coupling over joint. Tighten clamps and shear band reciprocally.
    Center coupling over joint. Tighten clamps and shear band reciprocally.

01 3d
