  • Connector for different materials and dimensions
  • For above ground industrial applications
  • Stainless steel shear band protects the entire sleeve
  • Resistant to 0.6 bar

Multi-Connector TRANSFER – for the connection of plain ended industrial pipe systems from all materials

The Multi-Connector TRANSFER joints plain ended industrial pipe systems with same or different diameters.

The stainless steel shear band covers the entire coupling, hence protecting the elastomer sleeve.

When changing nominal diameters, the flow direction needs consideration.

PHONE Sales & Technical-Team
+49 2234 928 03-0
Description
Multi-Connector TRANSFER
Technical Specification

Multi-Connector TRANSFER for the connection of plain ended industrial pipe systems from different materials with same or different diameters.

Manufacturer:

MÜCHER DICHTUNGEN®, 50226 Frechen, T +49 2234 928 03-0, F -55

Pressure Tightness:

0.6 bar water / -0.3 bar vacuum

Jetting Resistance:

120 bar

Sealing Material:

EPDM rubber according to DIN EN 681-1

Stainless Steel:

AISI 304/1.4301 according to DIN EN 10088-2

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

DIN EN 1629, CE18
MULTI-CONNECTOR TRANSFER
Article NumberReferenceA Size Range (mm)B Size Range (mm)L Length (mm)resistant to (bar)Weight (kg)
90801688TRANSFER CP 15045-5045-50540.60.1
90802637TRANSFER KC 21545-5049-53540.60.2
90803601TRANSFER P 43085-90110-115540.60.4
90803569TRANSFER CP 4383-90105-115540.60.4
90804401TRANSFER CP 44105-112105-115540.60.2

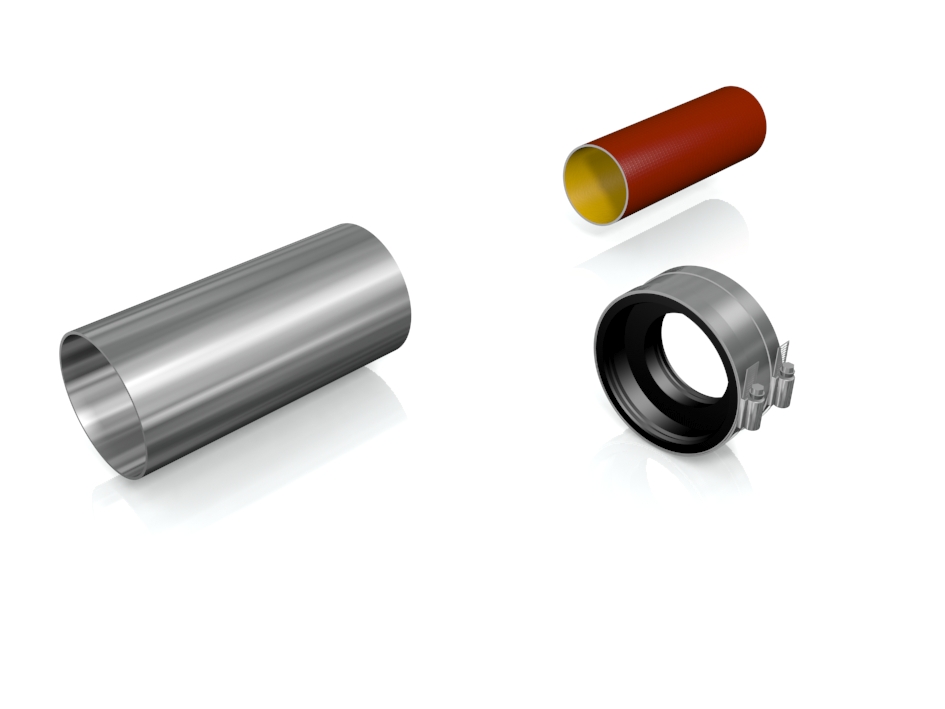

  • Position plain ended pipes.
    Position plain ended pipes.

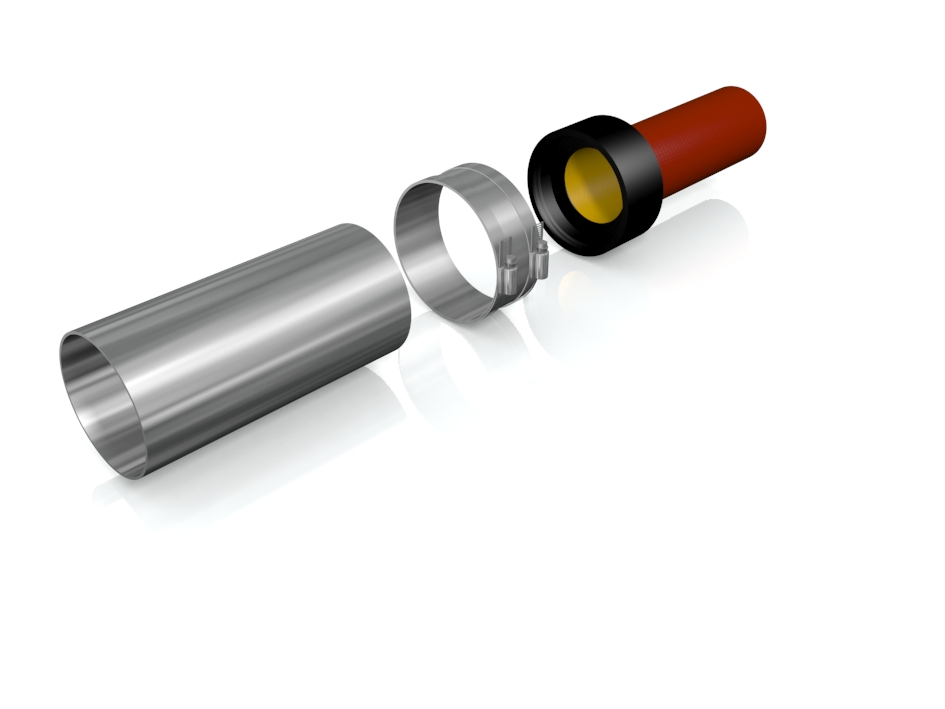

  • Slide sleeve over one plain end and push shear band over.
    Slide sleeve over one plain end and push shear band over.

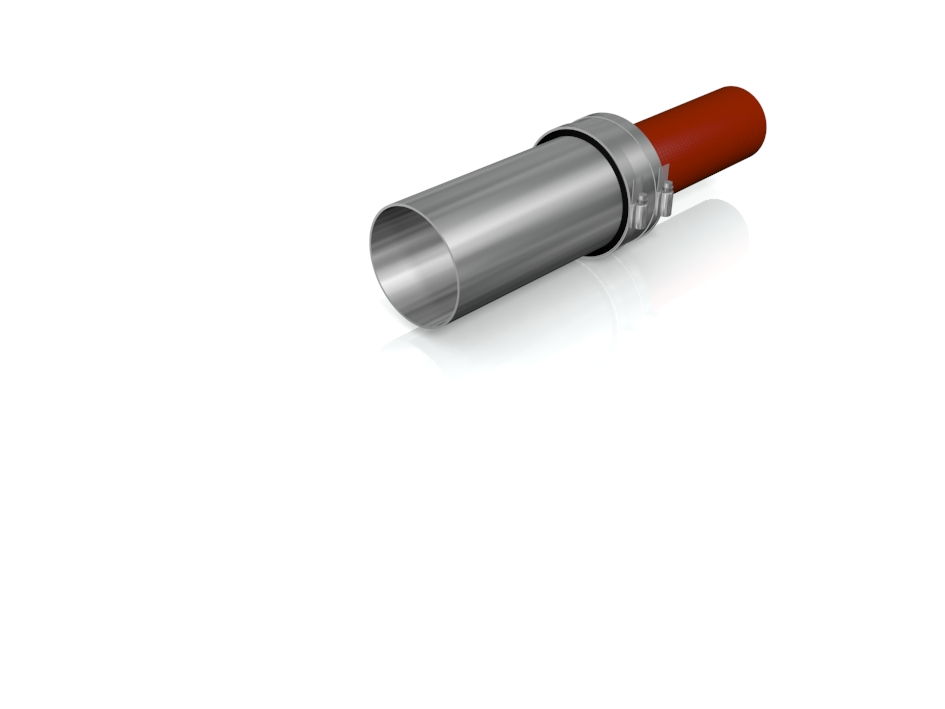

  • Tighten clamps reciprocally.
    Tighten clamps reciprocally.
